Key Features & Highlights
✅ Large 15-Inch Propellers – Delivers efficient power output for stable and long-duration flights
✅ High-Strength Carbon Fiber Frame – Ensures durability, impact resistance, and lightweight construction
✅ 5KG Payload Capacity – Supports multiple sensors, cameras, and transportation payloads
✅ Advanced Flight Control System – Features path planning, automatic hovering, and one-key return
✅ Extended Flight Time – 50-60 minutes with high-capacity LiPo battery
✅ Strong Wind Resistance – Handles up to Level 6 wind speeds
✅ Multi-Scenario Applicability – Perfect for mapping, agriculture, logistics, and emergency rescue
Applicable Scenarios
🚀 Industrial Mapping: High-precision aerial photography and data collection
🌾 Agriculture Applications: Compatible with agricultural sensors for precision monitoring
📦 Logistics & Transportation: Supports short-distance heavy-load transport
🚑 Emergency Rescue: Rapid deployment for complex terrain and disaster monitoring
Technical Specifications

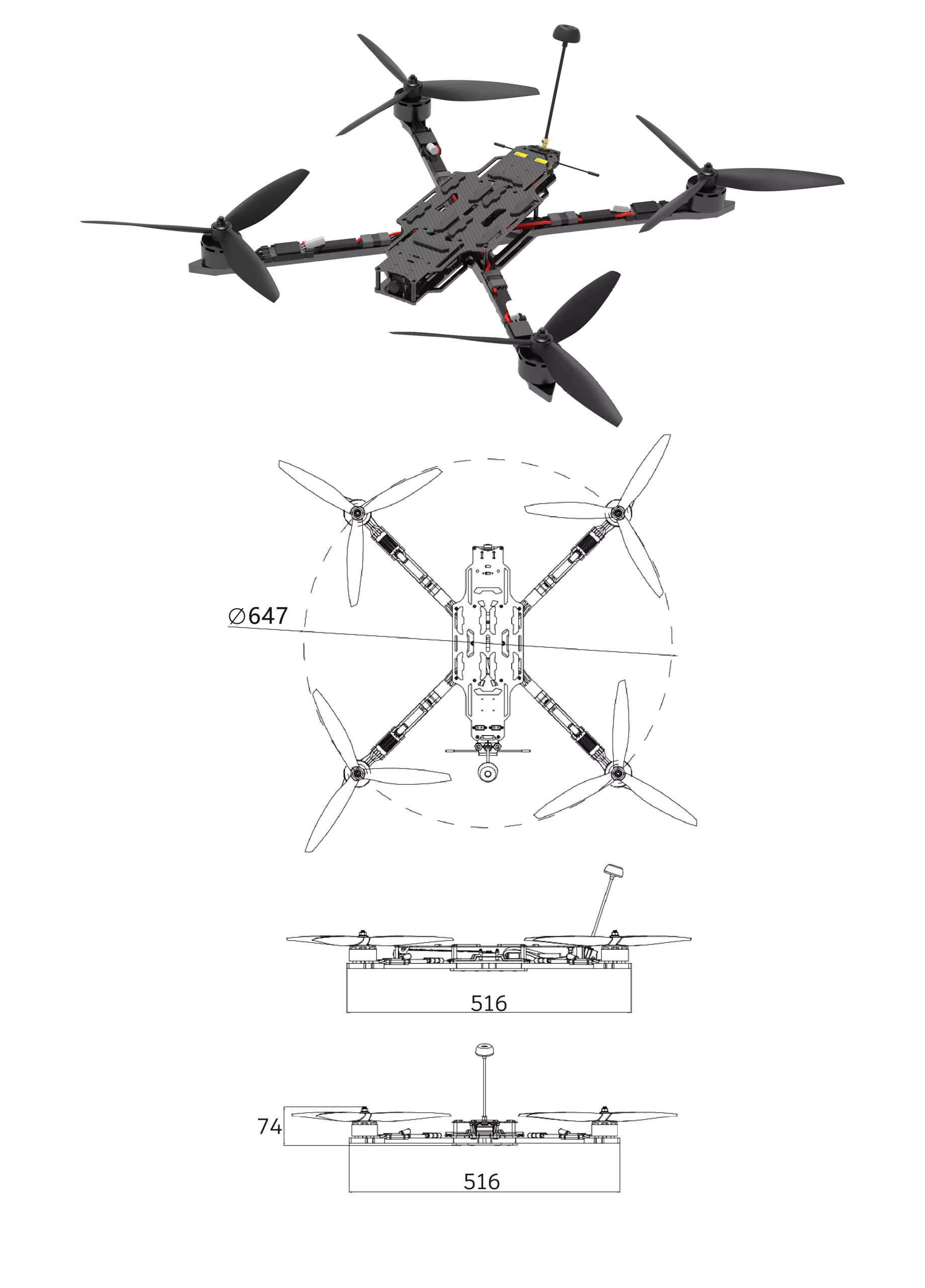

1. Aircraft Specifications
| Specification | Details |
|---|---|
| Model | 15-Inch Industrial-Grade Drone |
| Material | High-Strength Carbon Fiber Frame |
| Propeller Size | 15 Inches |
| Maximum Load Capacity | 5KG |
| Endurance (Flight Time) | 50-60 Minutes (depending on battery configuration) |
| Battery Compatibility | LiPo 6S / 7S (User-Selected) |
| Flight Control System | Supports Industrial Mission Planning Module |
| Maximum Flight Speed | 80 km/h |
| Wind Resistance | Level 6 |
| Navigation & Positioning | GPS / RTK Support (Optional) |
| Operating Temperature | -10°C to 50°C |
| Communication Range | 10-15 km (depending on transmission module) |
2. Flight Performance & Control
| Specification | Details |
| Takeoff & Landing | Automatic Takeoff & Landing |
| Flight Modes | Manual, GPS-Assisted, Autonomous Path Planning |
| Obstacle Avoidance | Optional Add-On |
| Return-to-Home (RTH) | One-Key Auto Return |
| Mission Planning | Pre-Set Flight Paths & Waypoints |
| Hovering Accuracy | Vertical: ±0.1m (GPS), Horizontal: ±0.3m (GPS) |
| Flight Data Logging | Real-Time Telemetry & Recording |
3. Camera & Payload Compatibility
| Specification | Details |
| Gimbal Compatibility | Supports 3-Axis Stabilized Gimbals |
| Camera Compatibility | Supports Professional DSLR, Lidar, Thermal, and Multispectral Sensors |
| Payload Interface | Modular Design for Custom Sensor Integration |
4. Battery & Charging
| Specification | Details |
| Battery Type | LiPo 6S / 7S (User-Selected) |
| Battery Capacity | High-Capacity, User-Configurable |
| Charging Time | Approximately 90 Minutes (Fast Charging Supported) |
| Battery Life Cycle | Up to 500 Charge Cycles |
5. Transmission & Communication
| Specification | Details |
| Control System | Industrial-Grade Wireless Controller |
| Video Transmission | Real-Time HD Video Streaming |
| Operating Frequency | 2.4 GHz / 5.8 GHz (Dual-Band) |
| Max Transmission Distance | 10-15 km |
| Low-Latency Communication | <100ms |
6. Recommended Applications
📍 Surveying & Mapping – High-precision geospatial data collection
🌾 Agriculture & Environmental Monitoring – Supports multispectral cameras and NDVI sensors
🚢 Maritime & Coastal Monitoring – Long-range inspection & environmental tracking
🏗 Construction & Infrastructure Inspection – Captures detailed structural analysis
🚑 Emergency Services & Disaster Response – Search & rescue operations
Why Choose the 15-Inch Industrial-Grade Drone?
✔ Optimized for Industrial Applications – Supports mapping, logistics, and security missions
✔ Long-Flight Endurance – Up to 60 minutes per charge
✔ Heavy Payload Capacity – Carries up to 5KG of equipment
✔ Durable & Weather-Resistant – Designed for extreme conditions
✔ Customizable Expansion – Flexible sensor & module compatibility
